i9
Comfort - Smart

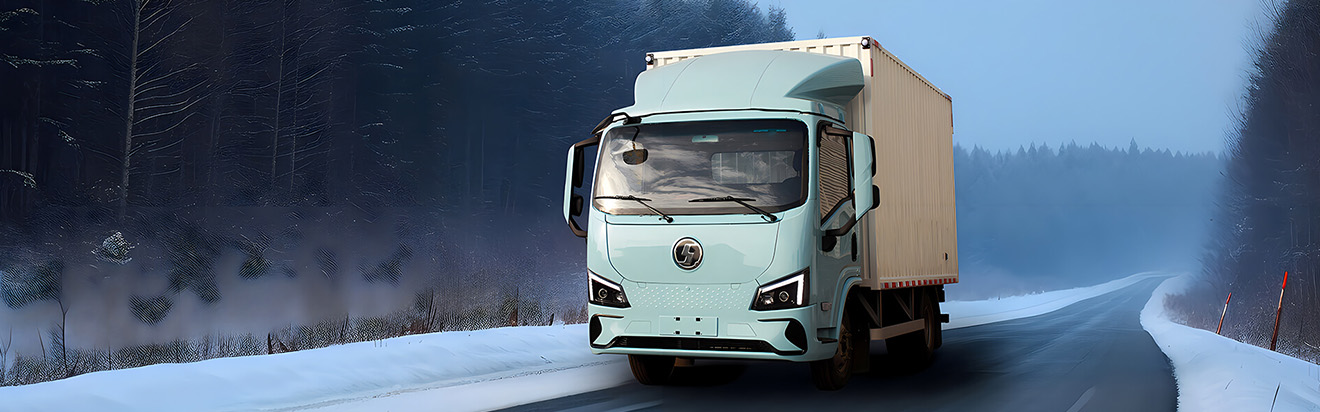

i9 series electric light truck comprehensively meets the needs of market segments such as express delivery, supermarket distribution, less-than-truckload (LTL), cold chain, etc. We devote to develop a new product with long endurance, high attendance rate, intelligence, and leading technology.
- Lorry Truck
-

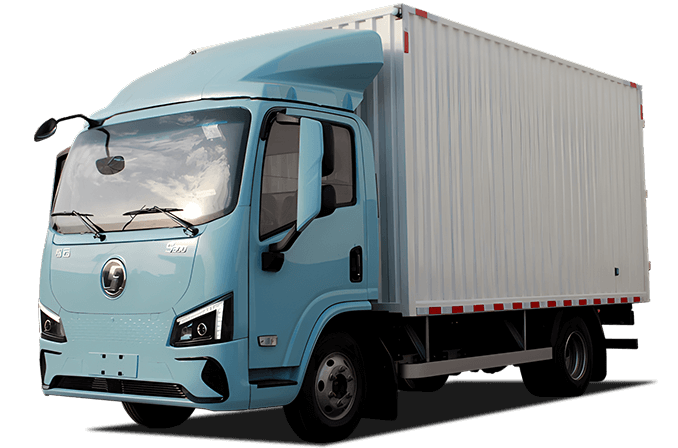

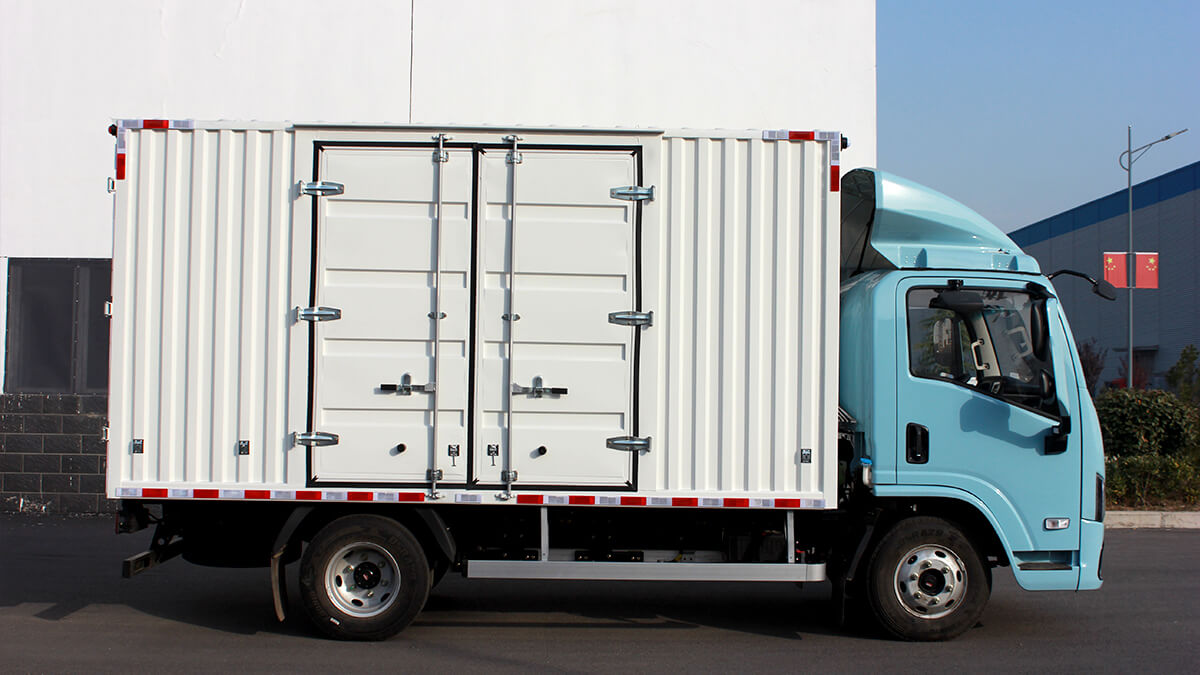

I9 Lorry Truck 4×2i9 Series Products
Parameter-
Battery capacity(Kw.h):100
-
Emission standard:Electric power
-
GVW(T):≤8
-
Load mass(T):≤4
-
Product advantage
Customized working condition strategies according to different scenarios of urban working conditions and high-speed working conditions, improving the efficiency. After the vehicle is turned off, it wakes up regularly to detect the battery voltage. When it is lower than the under-voltage protection threshold, it intelligently starts DCDC to recharge the vehicle battery. Battery detachment alarm: after the power battery is detached from the vehicle, the detachment status is reported to the platform through Tbox. Car-to-car charging: the DC charging port of the vehicle can be compatible with the discharge function, which supports external devices to get electricity from the DC charging port. Insulation monitoring After the insulation failure of the air conditioning circuit occurs, the air conditioner can be intelligently detected and disconnected, which does not affect the safe driving of the vehicle.

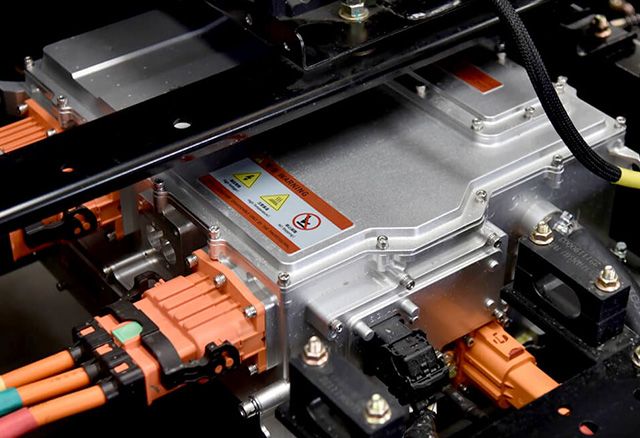

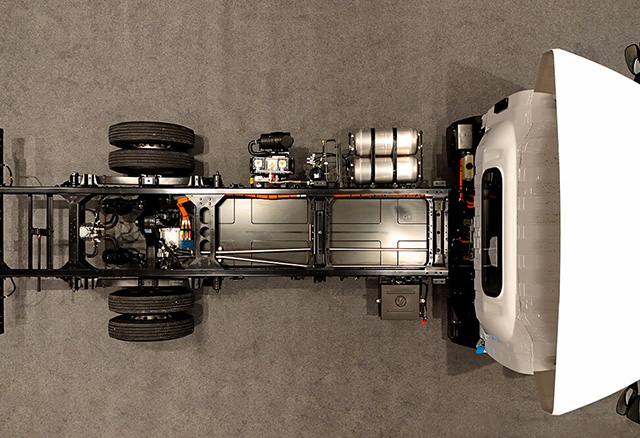

Customized five-in-one controller
Customized five-in-one controller: integrating TM, PDU, EHPS, ACM and DCDC, with higher power density and reliability;

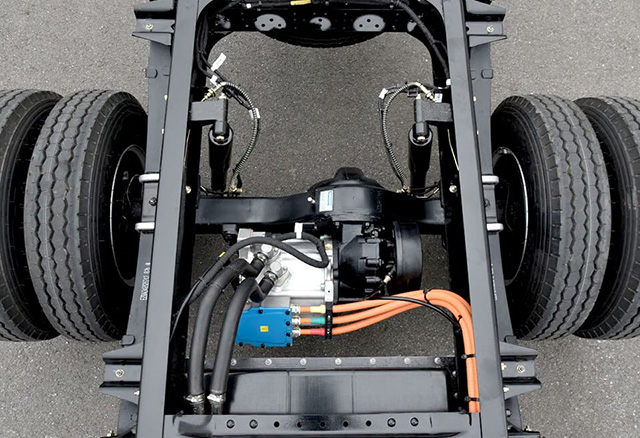

Hande integrated electric drive bridge
Hande integrated electric drive bridge, without transmission and gearbox, has higher energy conversion efficiency and lower vehicle energy consumption.
Huichuan flat wire motor
Huichuan flat wire motor has the highest motor speed in the industry, with rated power of 65 kW, rated torque of 160N. m and peak torque of 360N. m, and the motor in operation is always in a high efficiency area.
Lithium iron phosphate battery
Equipped with Contemporary Amperex Technology Co., Limited 86.55kWh/100.46kWh lithium iron phosphate battery, with high density and long cycle life. In addition, it can be used at -30~60℃. 750kw charging pile, with 10%-100% power needs to be charged for 1 hour.
- Customized five-in-one controller
- Hande integrated electric drive bridge
- Huichuan flat wire motor
- Lithium iron phosphate battery
Exterior/Interior
-

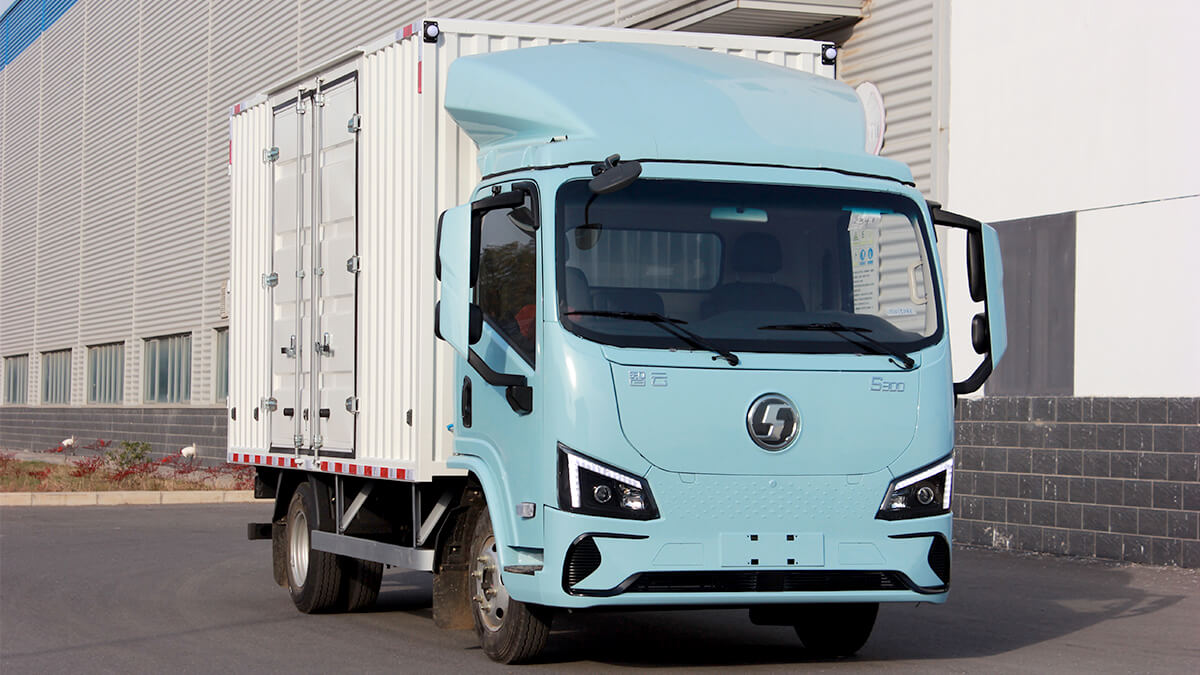

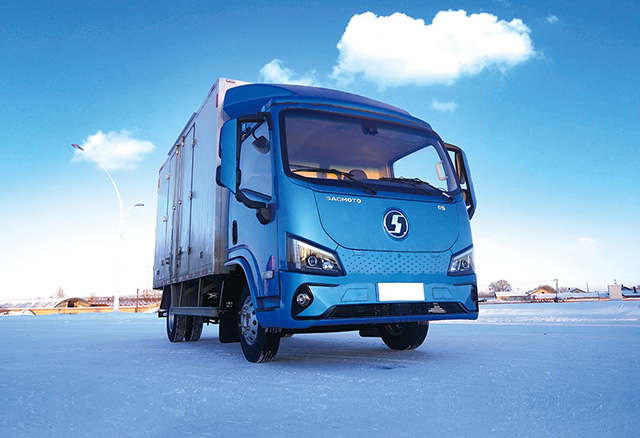

Brand-new product appearance, parameterized grille+integrated mask+bionic bumper design, exclusive features of new energy. -

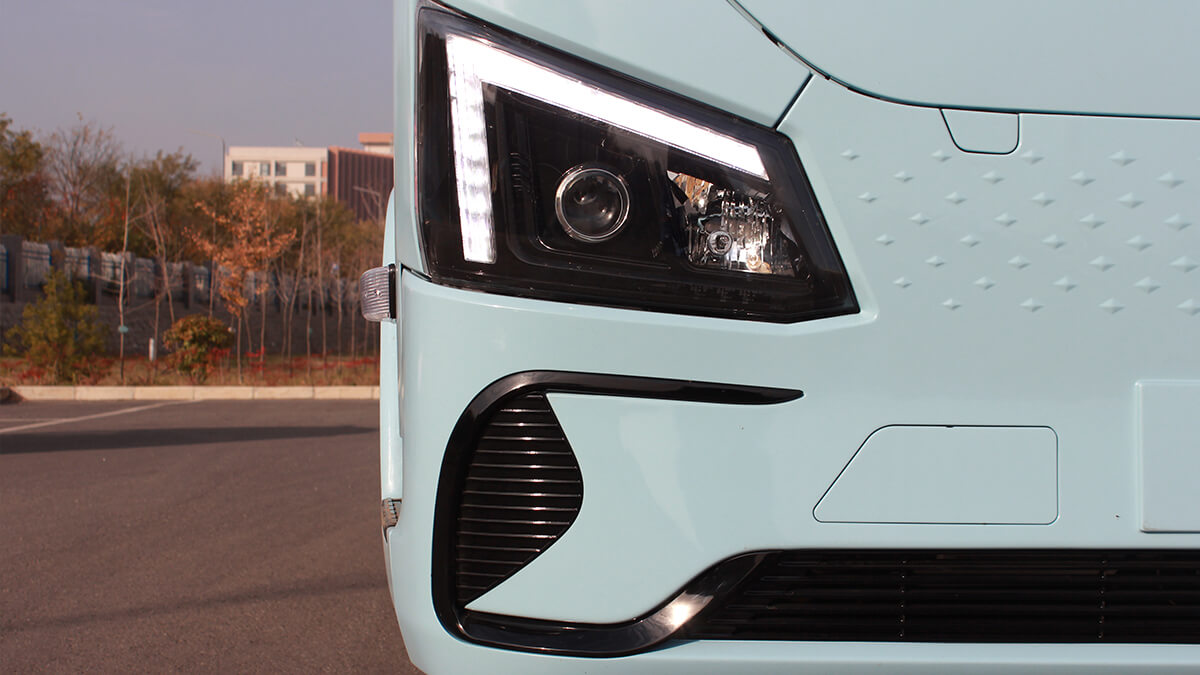

Optional LED daytime headlights, featured in eagle-eye blackened shape. -
The cab crash performance can meet the crash requirements of ECE_R29. -
Integral electric heating rearview mirror with ultra-narrow frame and larger area. -
The vehicle uses ergonomic design seats and excellent sound insulation and noise reduction technology to provide a more comfortable riding environment for drivers and passengers. -

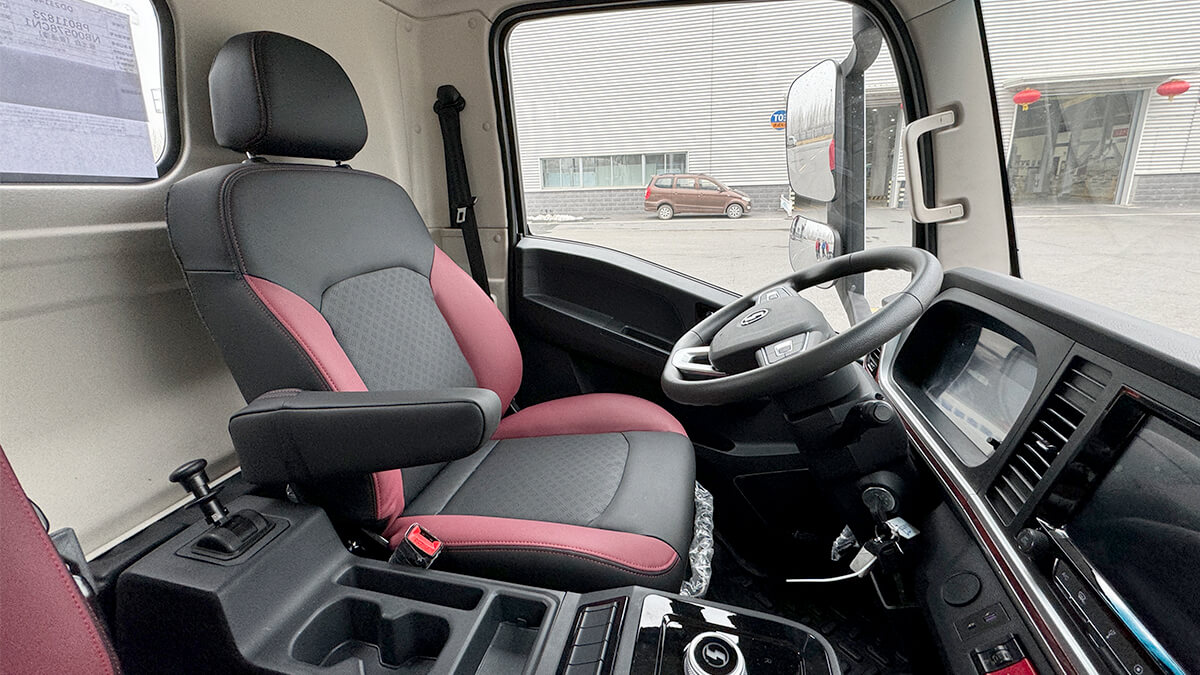

The driver's airbag seat and color matching leather design are more comfortable during driving and can adapt to different heights of drivers and passengers. -

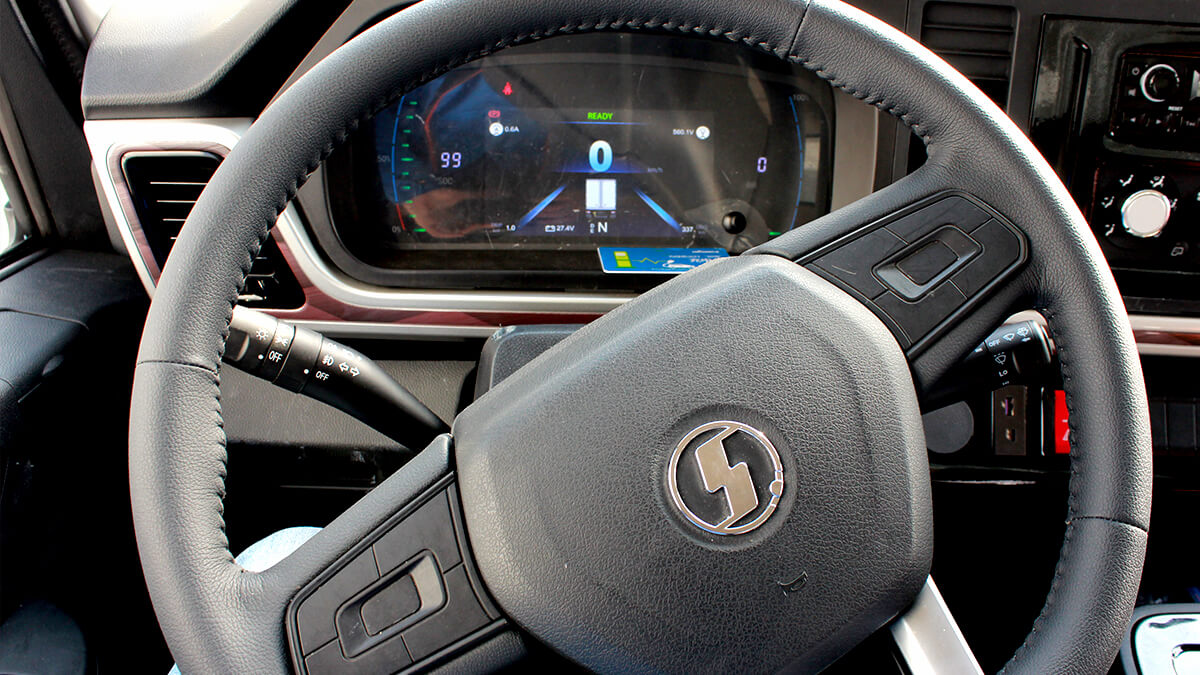

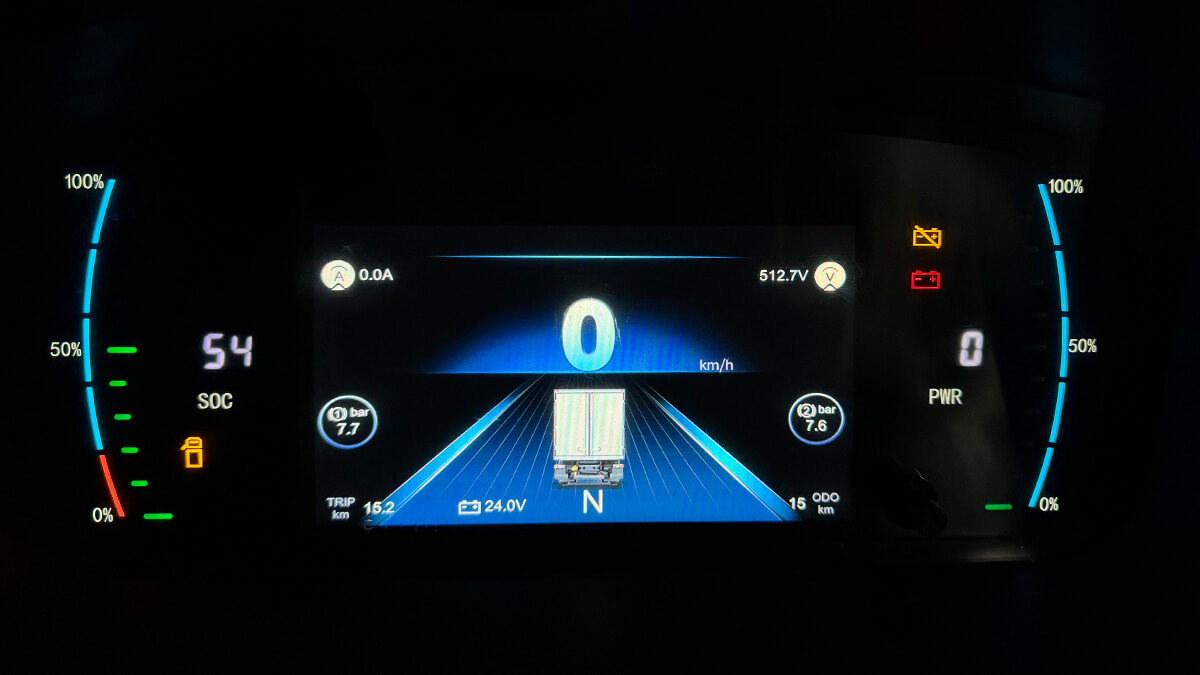

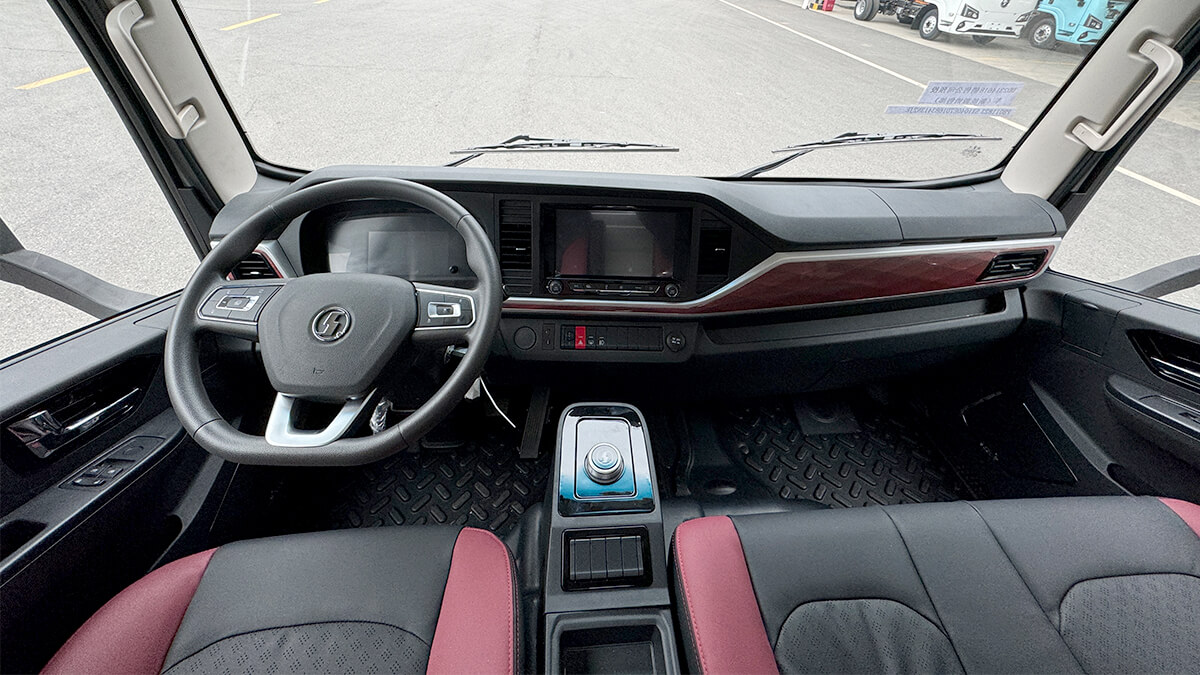

Steering wheel steering assist for easy driving. 7-inch color LCD instrument, makes it possible to read all kinds of data in driving intuitively and clearly. -
10-inch multimedia screen and rearview camera provide a convenient and agile driving experience. Automatic air conditioner instead of manual operation can easily keep the constant temperature in the car, which is convenient and comfortable.
